PLC HMI Integrated Programmable Logic Controller, 2.8” Touch Screen Built-In Analog Signal Input and Output Wtih 2 Pulse 100K

YKHMI MM-12MR-4MT-FE280D-FX-A / MM-12MR-4MT-FE280D-FX-B / MM-12MT-4MT-FE280C-FX-A Description:

1. PLC Type: Fully compatible with FX1S

1) 12MR-4MT-FE280D-FX-A:  7 Input 5 Relay Output (24V pulse single)

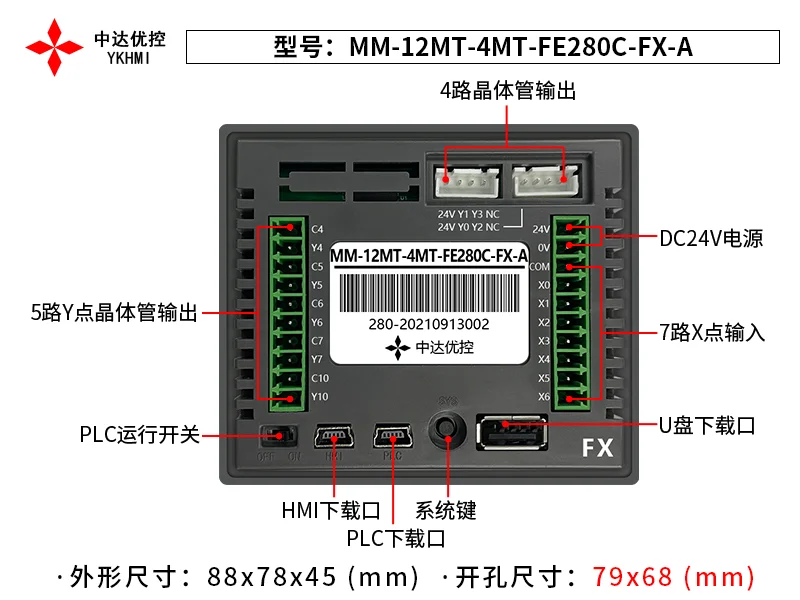

2) 12MT-4MT-FE280C-FX-A:  7 Input 5 Transistor Output (24V pulse single)

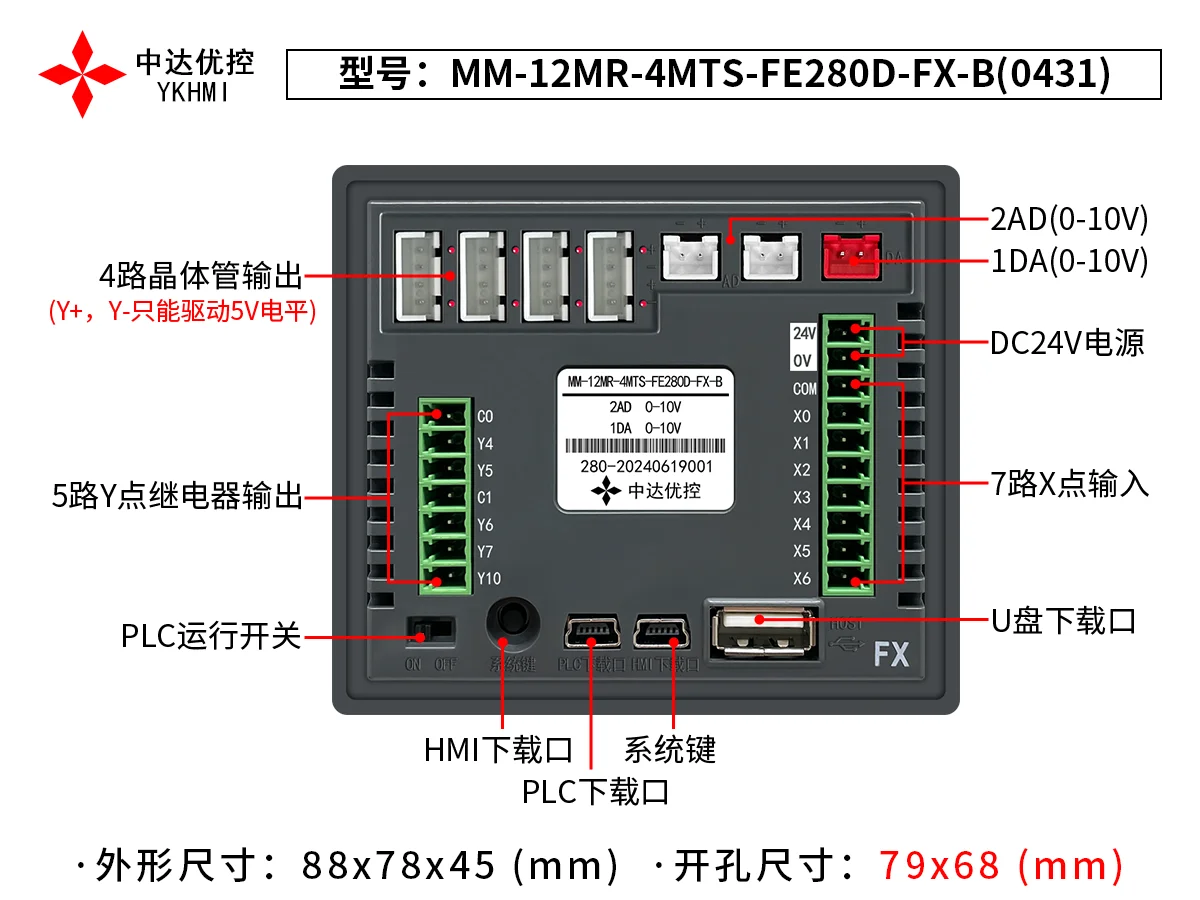

3) 12MR-4MTS-FE280D-FX-B：7 Input 5 Relay Output (5V pulse single) , 2 Analog input 0-10V, 1 Analog ouput 0-10V

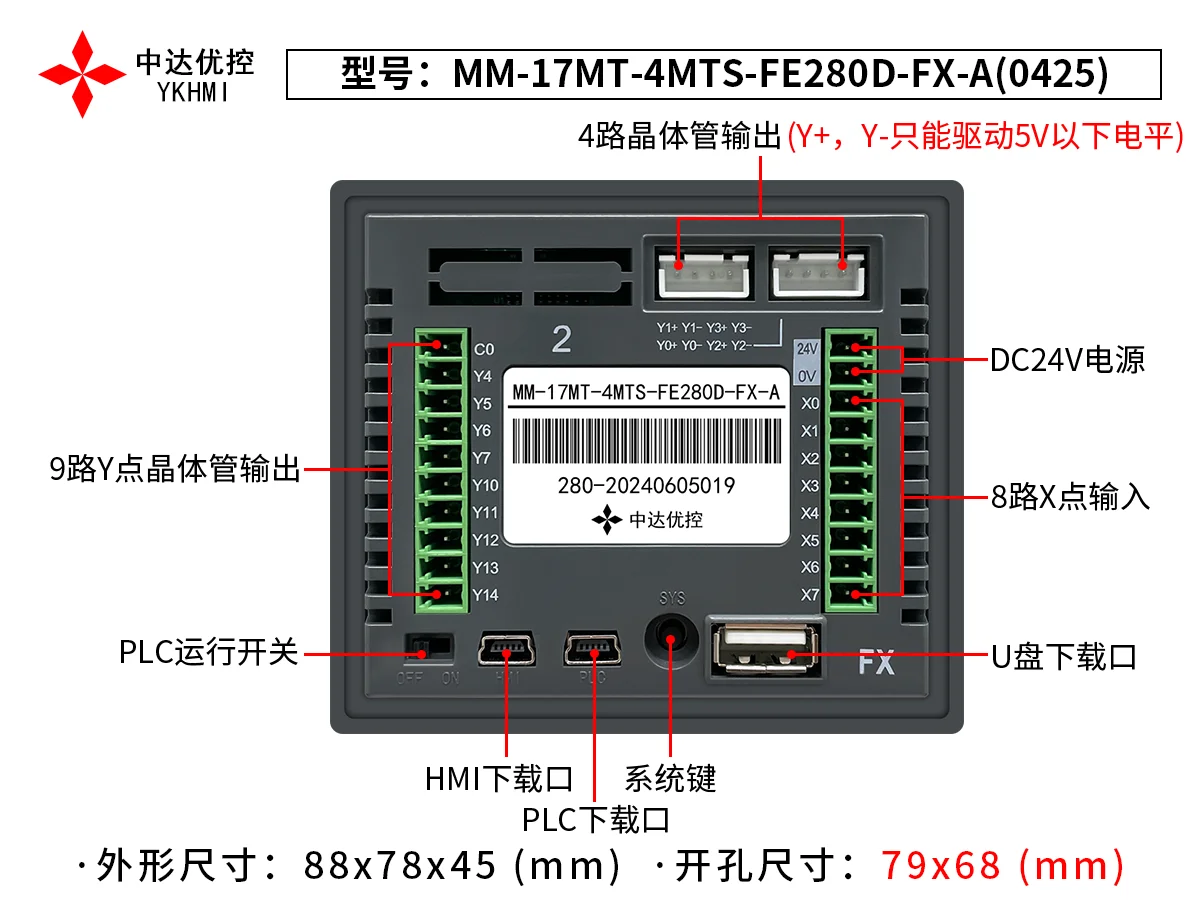

4) 17MT-4MTS-FE280D-FX-A： 8 Input 9 Transistor Output (5V pulse single)

Have additional 4 Transistor Output: For 2 high speed pulse 100K & 2 direction, can drive 2 servos or 2 steppers with pulse

2. PLC software: GX Workers2 or Developer(pls download from website, we only have Chinese version), support Command + T Ladder Diagram + SFC for programming

3. HMI Software: YKBuilder V5.3

4. Cable for download program from PC to PLC/HMI: Use the: mini port – USB cable, pls install HMI & PLC’s USB driver first.

5. High Speed: 2 high speed counting, 2 high speed output pulse (100K) with 24v/5v signal

HMI SPEC.

Attention:

Pls contact us for HMI software and Wiring diagram, we will share the course & give technical support if any. Thank you!
